Combo Camera + 5.8GHz VTX A01 AIO pour la série PRO2

Le combo Camera A01 AIO est parfait pour la série PRO2.

Il intègre un VTX A01, une camera FPV 600TVL et une antenne dipôle haute sensibilité

VTX A01

Minuscule, léger et résistant, le A01 est livré avec un port pour se connecter à la FC et des trous de montage pour se fixer sur la canopy.

Points Forts

  • Puissance commutable entre 0mW, 25mW et 200mW
  • Fonction SmartAudio vous permettant de controller le VTX avec votre Radio afin de changer de channel ou de puissance d'émission
  • Pitmode
  • Antenne Dipole haute sensibilité

Caractéristiques

  • Puissance de sortie: 0mW, 25mW and 200mW (Ajustable)
  • Tension d'alimentation: 5V
  • Poids: 2.0g
  • Fréquences: 5.8GHz 6 bands 48 channels, dont Raceband: 5362~5945MHz





The A01 AIO Camera combo is perfect for Pro2 series whoop drones, which is integrated with A01 VTX, 5.8GHz FPV Transmitter, 600TVL FPV Camera and Dipole Whip Antenna. It’s compatible with 5.8G FPV Google VR006. With the port to connect with FC and mounting holes to fix on Canopy, convenient for installation.

FEATURE

  • Micro-sized, lightweight
  • Integrated Camera and 0mW/25mW/200mW adjustable transmitter
  • Support PitMode, power up VTX during race events without interfering
  • Dipole whip high sensitivity antenna. It is mounted to the VTX board durable.
  • With the port to connect with FC and mounting holes to fix on Canopy, convenient for installation
  • Included with SmartAudio function. FC can communicate with the VTX by using the audio line-in, which allows FC to know what frequency the VTX is using, and to change it

      SPECIFICATION

      • TVL: 600TVL
      • FOV: H:120°/V:100°
      • Video System: NTSC/PAL(Switchable)
      • Horizontal Resolution: 640X480 1/4”
      • Output power: 0/25mW/200mW adjustable (Set output power on 0, to avoid frequency interference)
      • Supply Voltage: 5V
      • Size: 28x19x5mm(VTX)
      • Weight: 3.2g
      • Antenna: RG178 Dipole Whip Antenna
      • Frequency: 5.8GHz 6 bands 37 channels, with Raceband: 5650-5925MHz
      A01 AIO Camera 5.8G VTX

        Camera Mount Different Choice for Flying Experience

        Two types of Camera tilts Mount at your disposal. 35° mount suitable for high-speed flight, while 25° mount for lower speed flight.

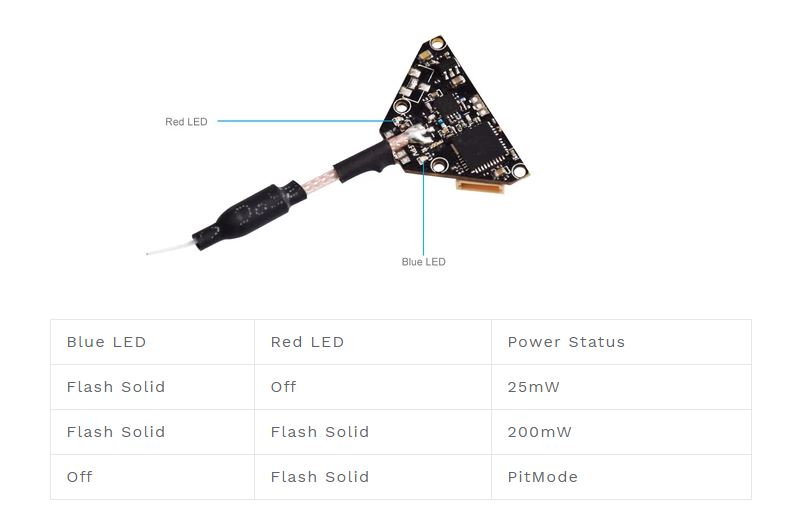

        Component Layout Diagram for A01 VTX

        The following diagram describes the organization and wiring of the physical components on A01 VTX board.

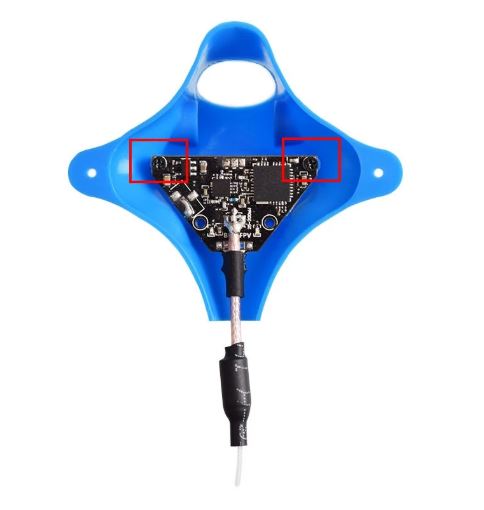

        How to Connect with FC

        A01 AIO VTX comes with port, convenient for installation






          PACKAGE

          • 1 * BETAFPV A01 AIO FPV Camera VTX
          • 1 * 5-Pin FC Pluggable Cable
          • 1 * Camera Mount (25 degrees)
          • 1 * Camera Mount  (35 degrees)
